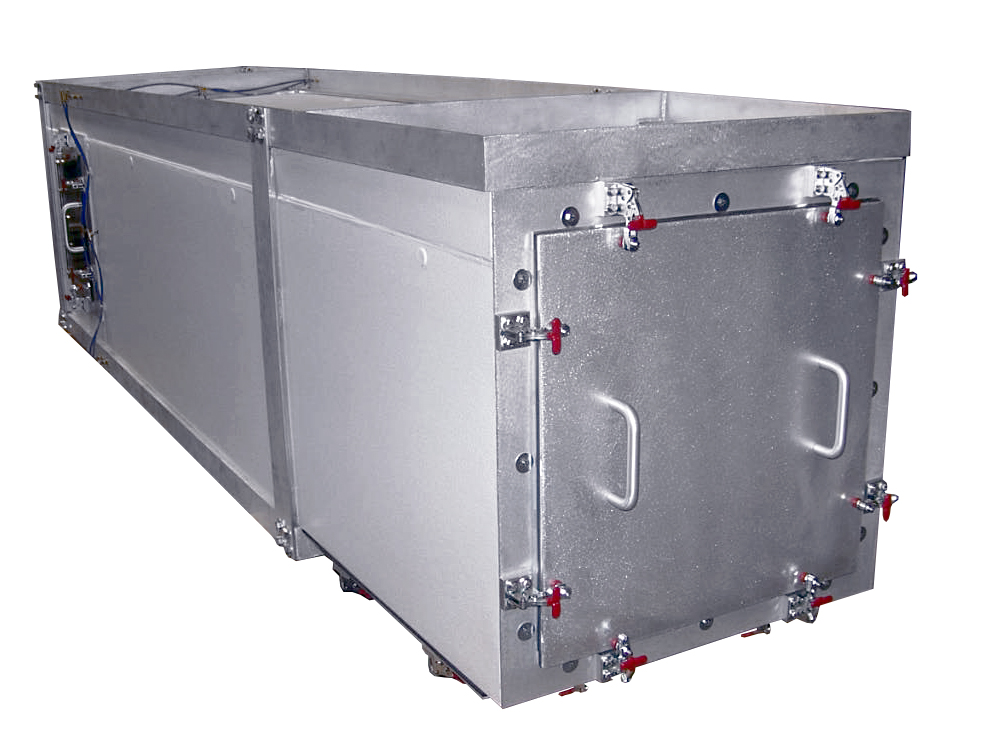

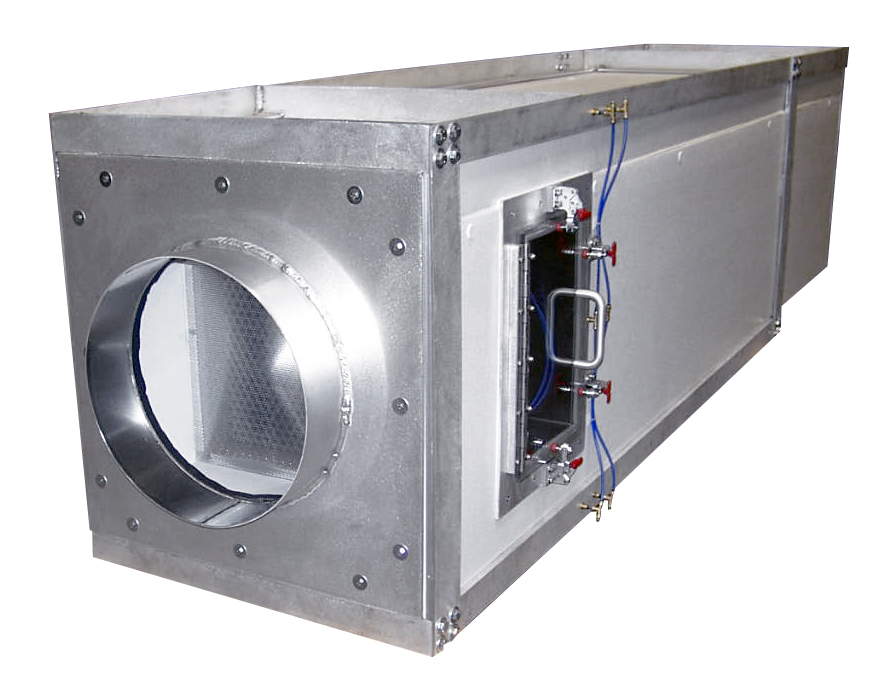

LINK’s code tester tunnels, as shown here, provide precision measurement of fan performance and air side enthalpy in heat exchangers.

Code Tester Tunnels

Product Overview:

LINK’s custom-built test benches provide precision measurement of fan performance and air side enthalpy in heat exchangers. With the ability to provide solutions ranging from small and basic to large and complex, LINK’s code testers can be built to your specifications. These can be provided with manual controls or fully automatic data acquisition and control systems. Applicable across industries they provide excellent airflow measurement and testing capabilities. Let LINK work with you for the best solution.

Key Benefits:

LINK designed and constructed Air Flow Test Benches will yield a repeatability of 1% or better
Air Flow Range from 4 CFM to 40,000 CFM with a 30:1 turndown ratio typical
Control Stability of 1% or better
1% repeatability of test results

Applications and Test Types:

Stand-alone fan and blower air flow testing
Packaged HVAC unit testing
Air side enthalpy determination (heating and/or cooling) applications
Fan / blower motor testing
