LINK Testing Solutions For The Civil Engineering Industry

Link Engineering Company offers civil engineering testing solutions. Equipment is shown here.

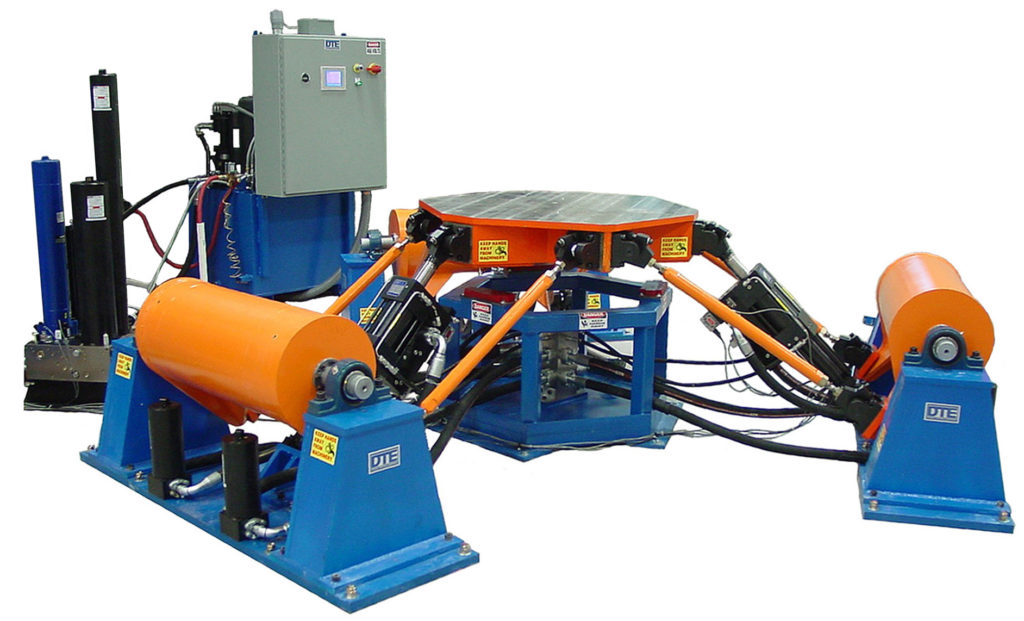

link-engineering-civil-engineering-photo-2link-engineering-civil-engineering-photo-2

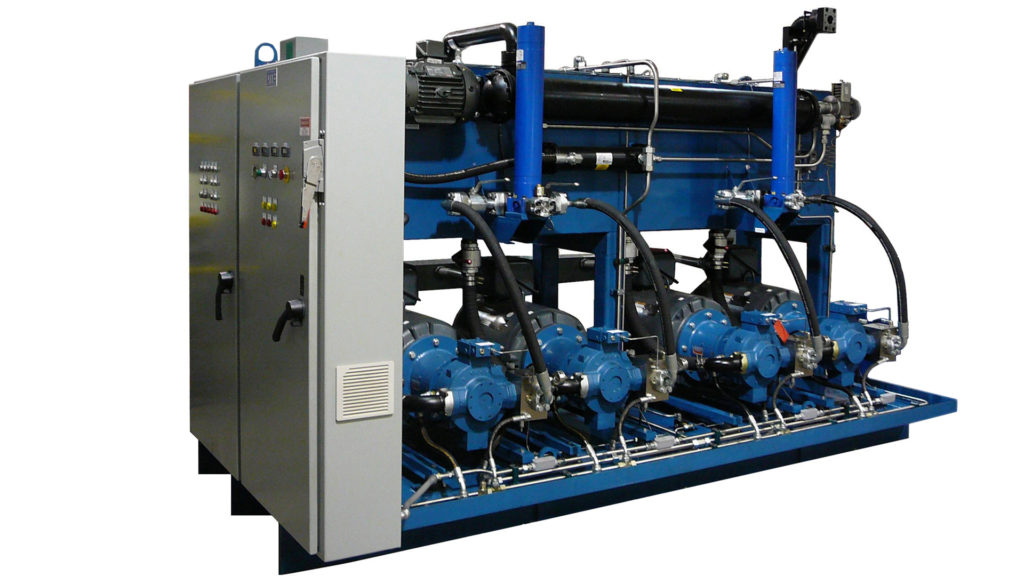

link-engineering-civil-engineering-photo-3link-engineering-civil-engineering-photo-3
link-engineering-civil-engineering-photo-4link-engineering-civil-engineering-photo-4
link-engineering-civil-engineering-photo-5link-engineering-civil-engineering-photo-5
link-engineering-civil-engineering-photo-6link-engineering-civil-engineering-photo-6

Link Engineering Company is equipped with an extensive library of standard and custom civil structural testing solutions. From the development of custom actuators, hydraulic power supplies, and testing systems, LINK is your premier civil industry testing provider. LINK is dedicated to providing the highest quality, optimal testing solution for your needs.

Major civil engineering projects require structural systems that will not fail due to environmental or seismic events. LINK supplies products and systems that range from multi-axis vibration tables for small components, to parts for extremely large systems. LINK also provides fatigue rated components and systems for dependable durability testing. LINK’s civil engineering solutions include:

  • Vibration systems
  • Load frames
  • Linear and rotary actuators
  • Hydraulic components
  • Controllers

VIEW OUR CIVIL ENGINEERING EQUIPMENT

Click Here

VIEW OUR CIVIL ENGINEERING TESTING SOLUTIONS

Click Here

LINK CIVIL ENGINEERING – RELATED ARTICLES
Read More

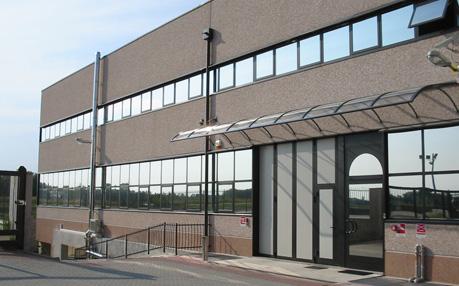

Link Engineering Company Purchases SERVO2000 in Milan Italy
