Equipment

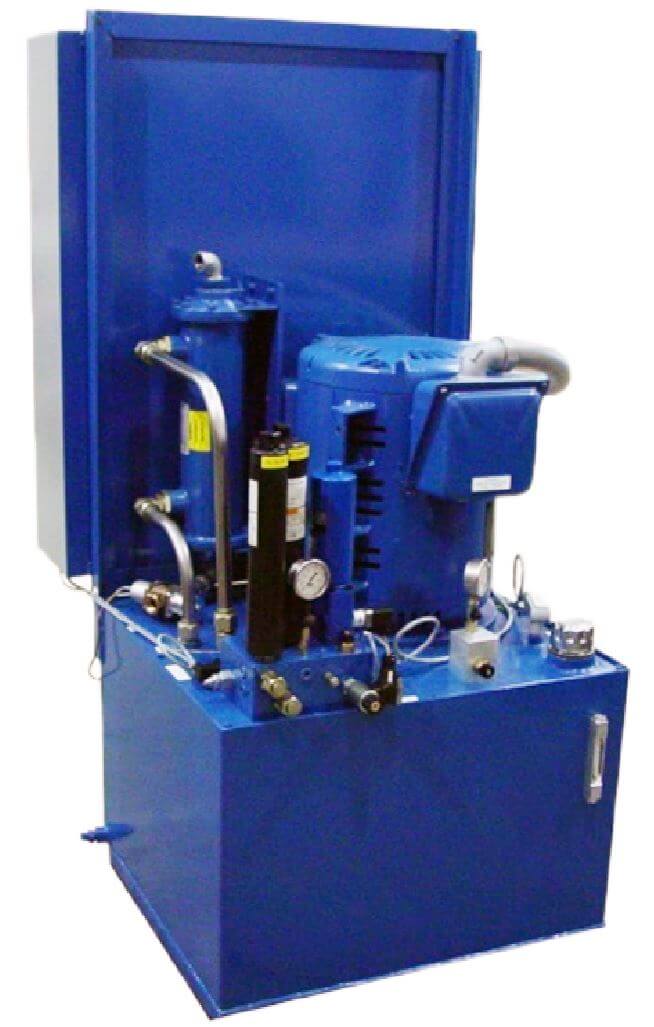

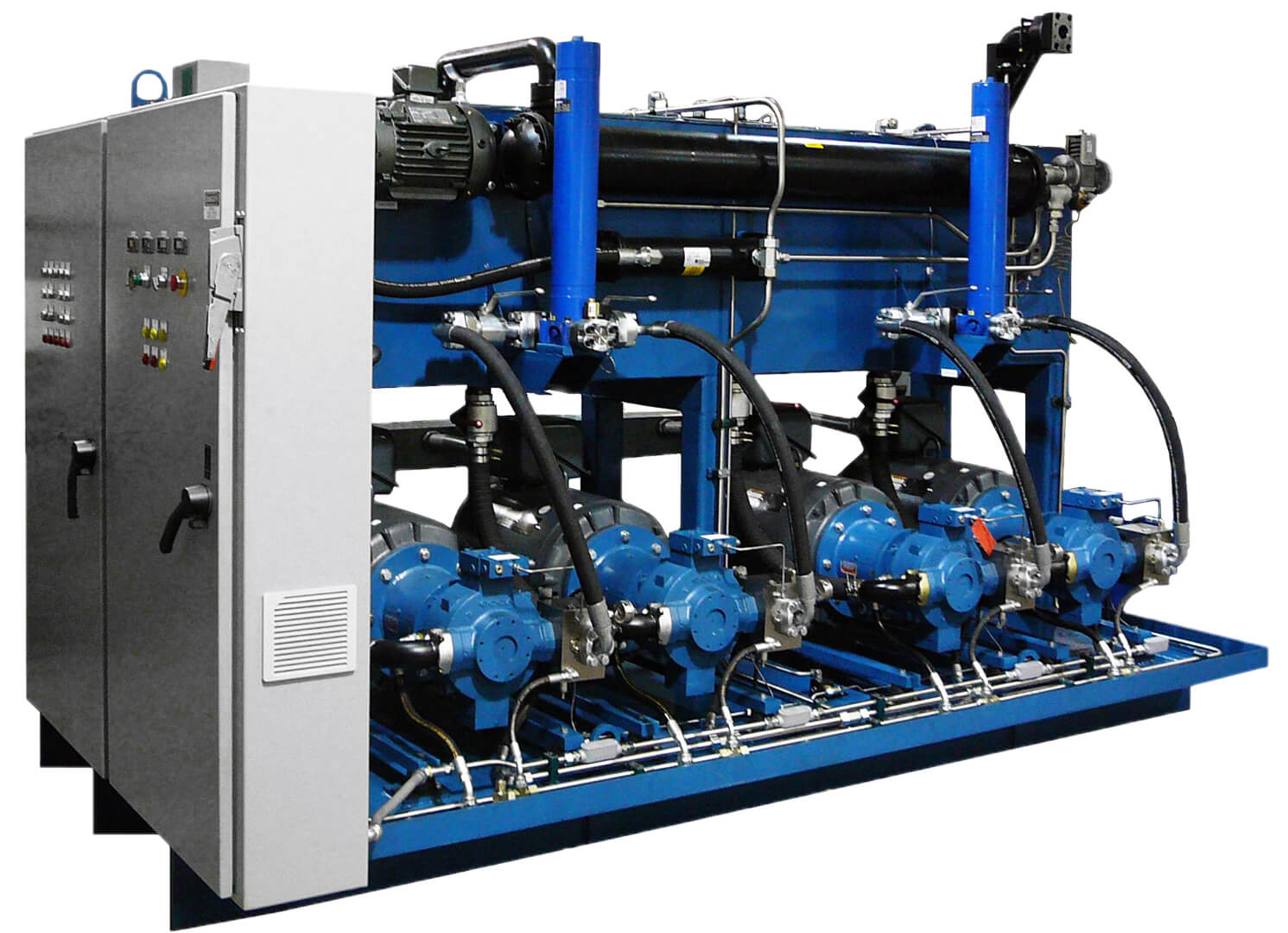

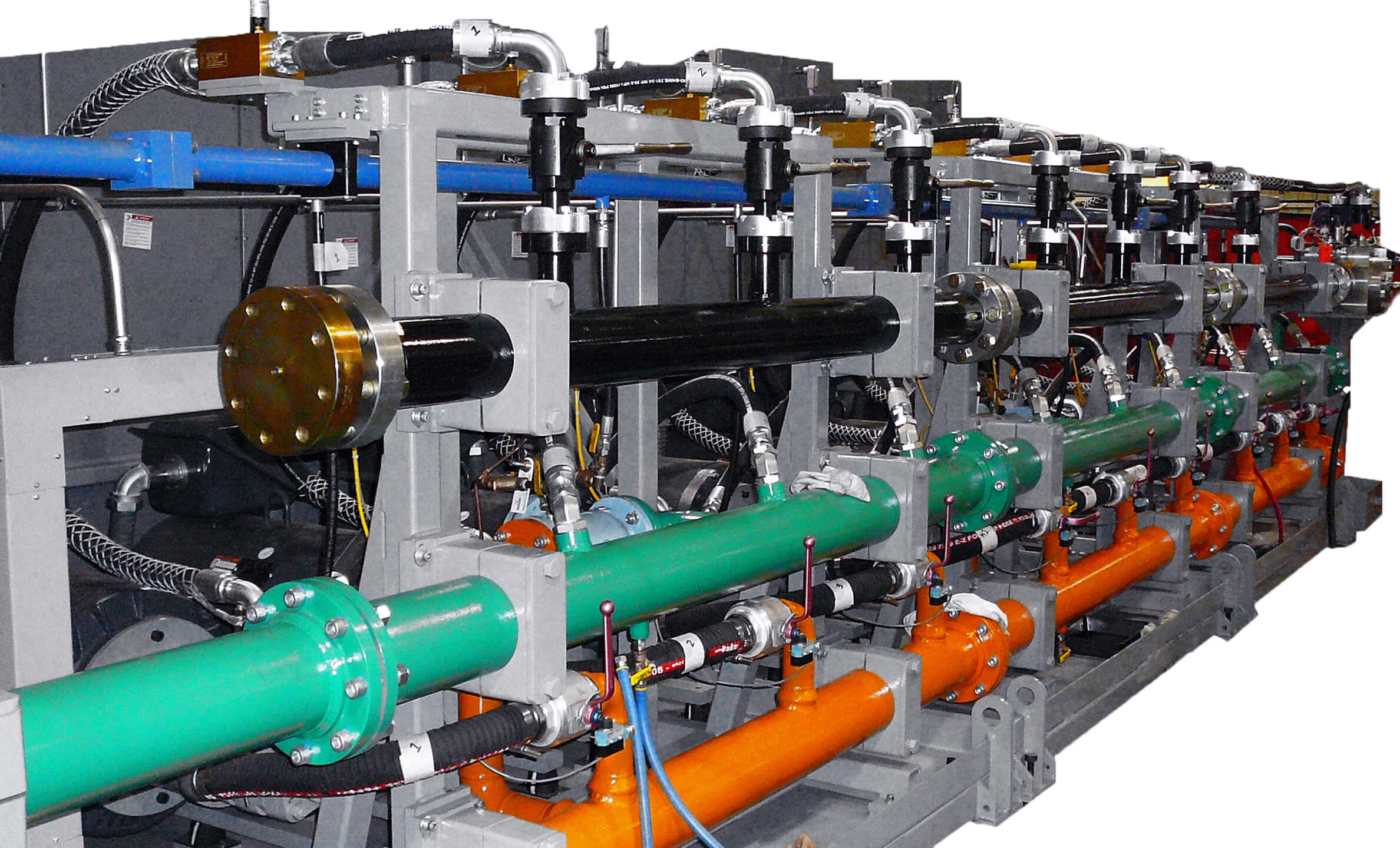

Hydraulic Power Supply

Overview

LINK’s Hydraulic Power Supply product line offers robust, flexible, and dependable solutions for supplying hydraulic power to your test systems. Multiple models are available to meet each customer’s unique needs.

Application

Used to hydraulically power test systems, specifically dynamic servo-hydraulic and test system applications.

Key Benefits

Customizable to fit your needs, including specialty fluids, Skydrol, ATF.
Low noise levels
Green, earth-friendly design
The Hydraulic Control Manifold can be incorporated into the Hydraulic Power Supply for increased benefits

Reduced floor space
Increased simplicity

Temperature, flow, and filter monitoring
Integrated control for test systems

Downloads:

Hydraulic-Power-Supply.pdf

Categories: Aerospace, Automotive, Civil Engineering, Commercial Vehicle, Motorcycle, Off-Highway, Other, Railway, Servo Dynamics, Servo Hydraulics, Structural Fatigue, Test Equipment
