Model 3378 Portable Vehicle DTV & Drag Test System

Overview

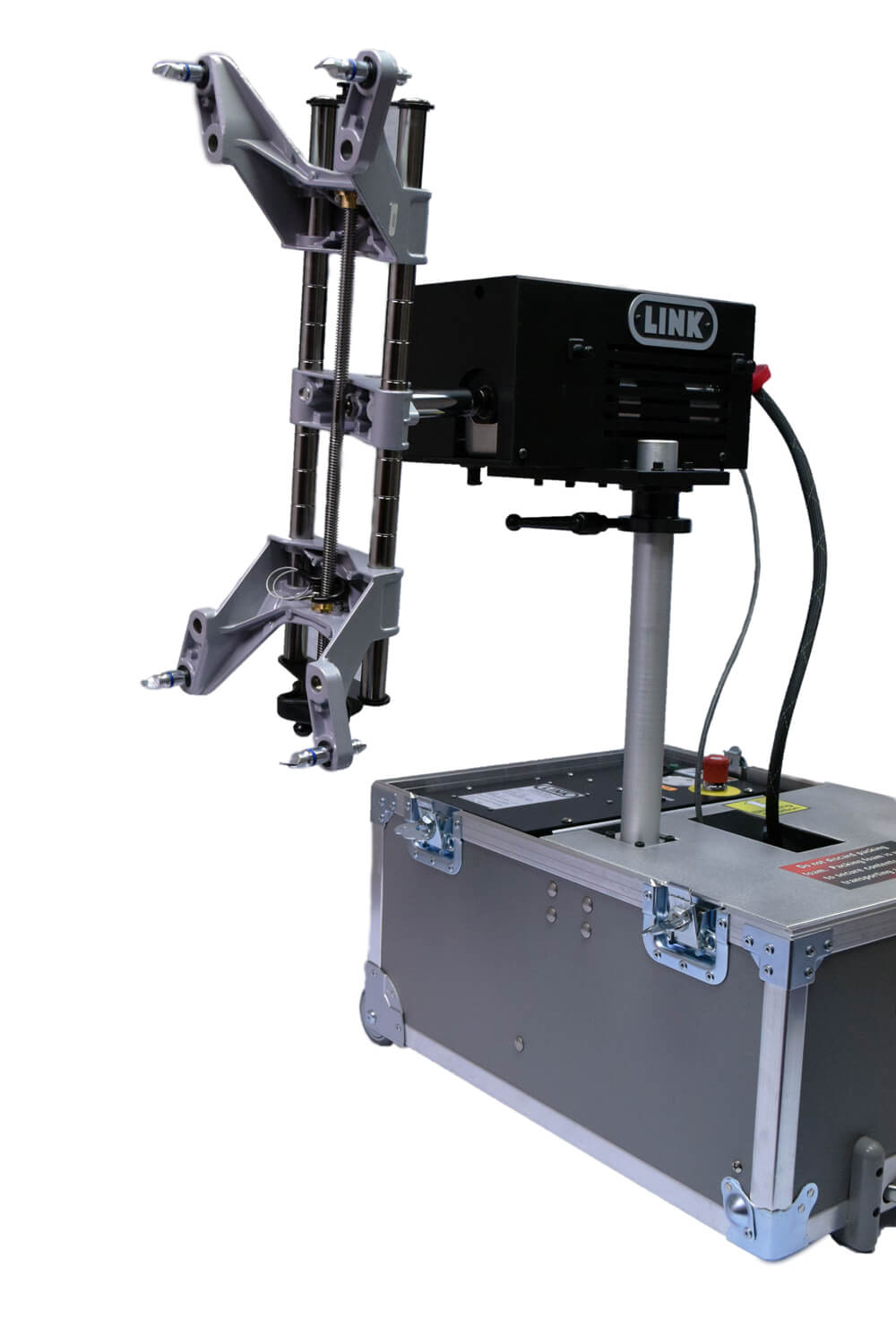

The Model 3378 Portable Brake Evaluation System provides on-vehicle drag measurement testing equipment in a convenient carrying case for transfer between test sites. Vehicle inboard and outboard rotor run-out as well as disc thickness variation (DTV) measurements are also available as options with this system.

Key Benefits

Real-time display of test data
Automatic report generation the operator to print out results immediately after test
Portable system allows transfer from site to site

Key Features

ProLINK software
0-5 rpm operation
Durable travel case

Test Procedures

Robust Spline Filter for processing slotted/cross-drilled rotors
Non-contact capacitive probes for DTV and rotor run-out measurements
Order tracking for DTV and rotor run-out data

Downloads:

M-3378-Portable-DTV-Drag-System.pdf

Categories: Automotive, Brakes, Durability, Equipment Rental, Laboratory Testing, Noise, Vibration, & Harshness, Performance, Test Equipment
