vImpact Product Overview

A precise and reproducible excitation of the test structure is indispensable for many test scenarios. To solve this, development of the vImpact automatic modal hammer product family was developed.

Maul-Theet’s vImpact ensures bounce-free excitation and reliable measurement of the excitation forces. Setting up the hammer position is quick and easy thanks to the hammer’s updated actuator principle and simple operation. The several models differ in the frequency range and maximum excitation force, and are therefore ideal for different areas of application.

The new vImpact-63 and vImpact-2003 have a set-up mode in which the hammers move to the impact position. In this position, correct alignment of the automatic modal hammers is very easy.

Key Features Of vImpact

• Bounce-free excitation (no double hits)
• Adjustable impact force up to 2.5 kN
• High reproducibility
• Frequency ranges up to 60 kHz
• Replaceable hammer tips
• Adjustable distance to test structure
• Easy setup and installation

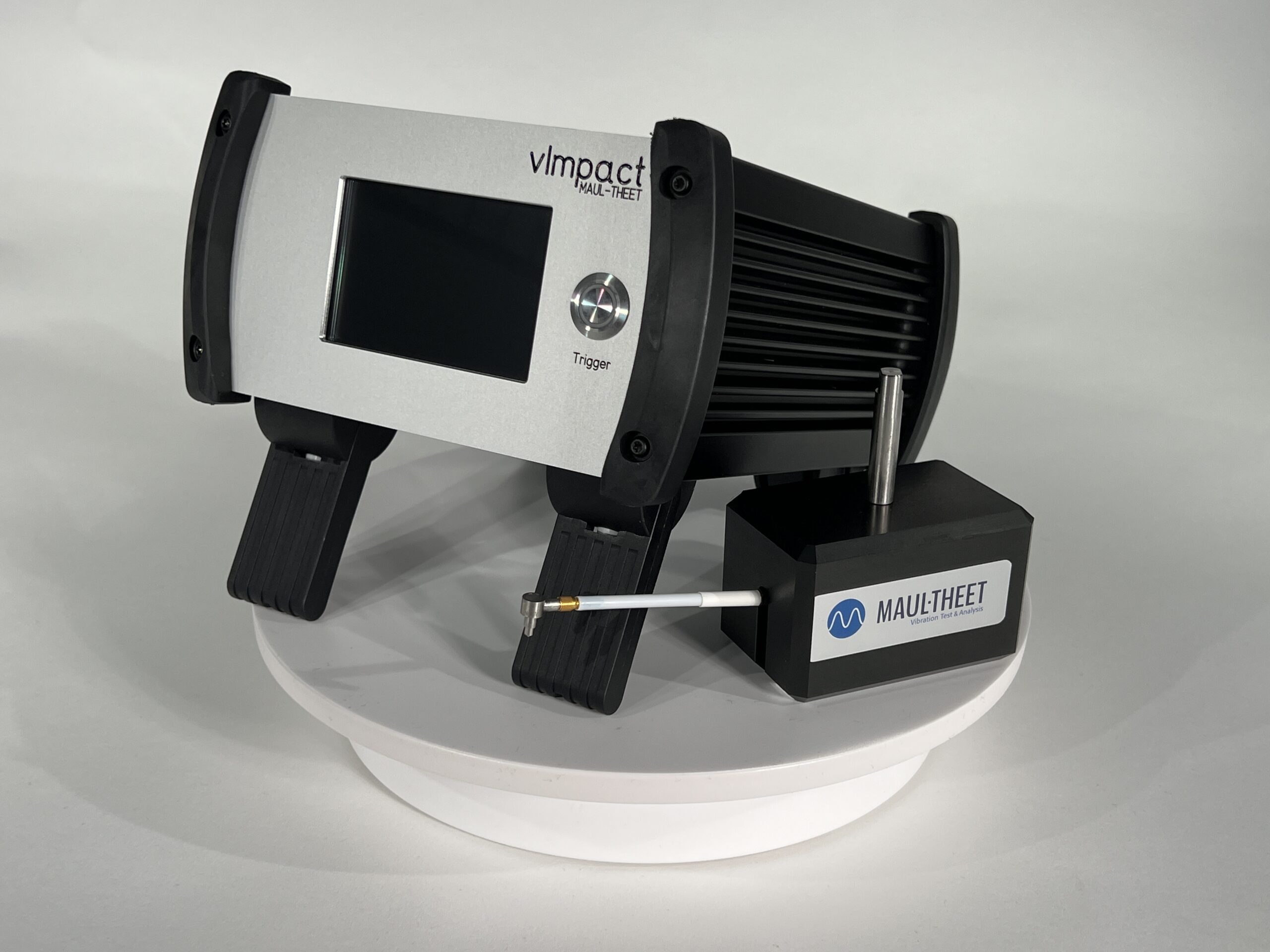

• Controlled operation via touchscreen
• USB control
• Model variants available for climate chambers from -65ºC to 150 ºC
• Countdown mode available
• Force Cell and sensor
• Countdown mode available
• Modal Analysis
