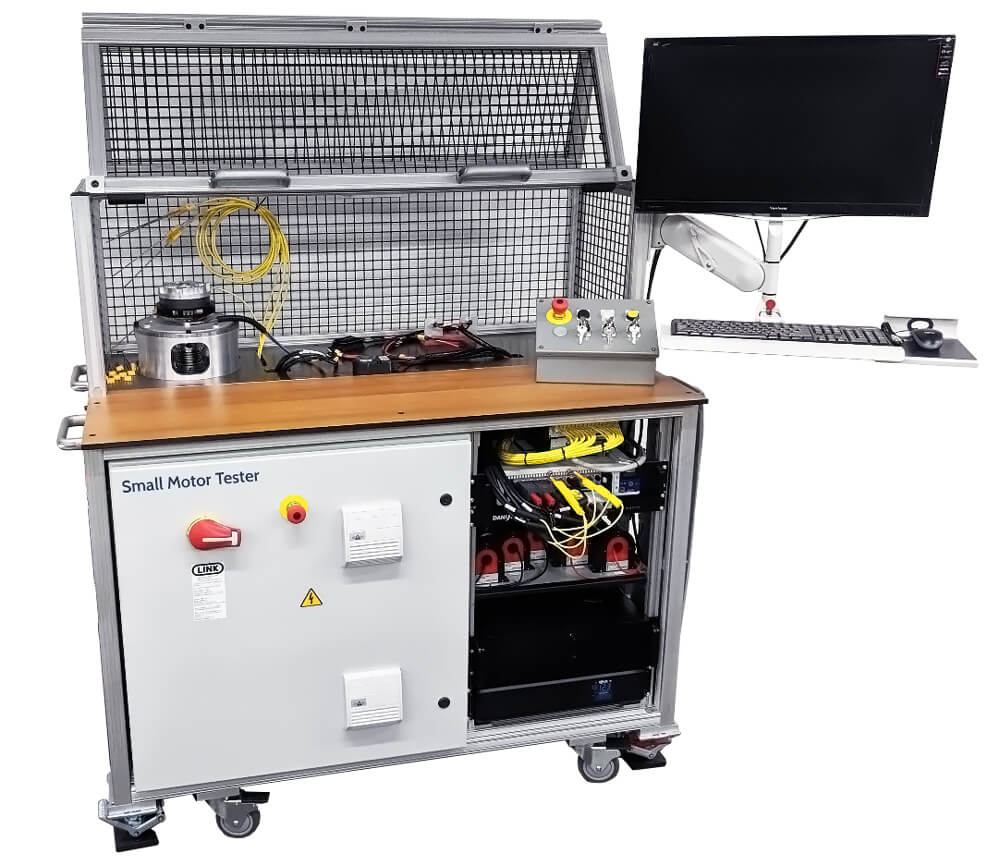

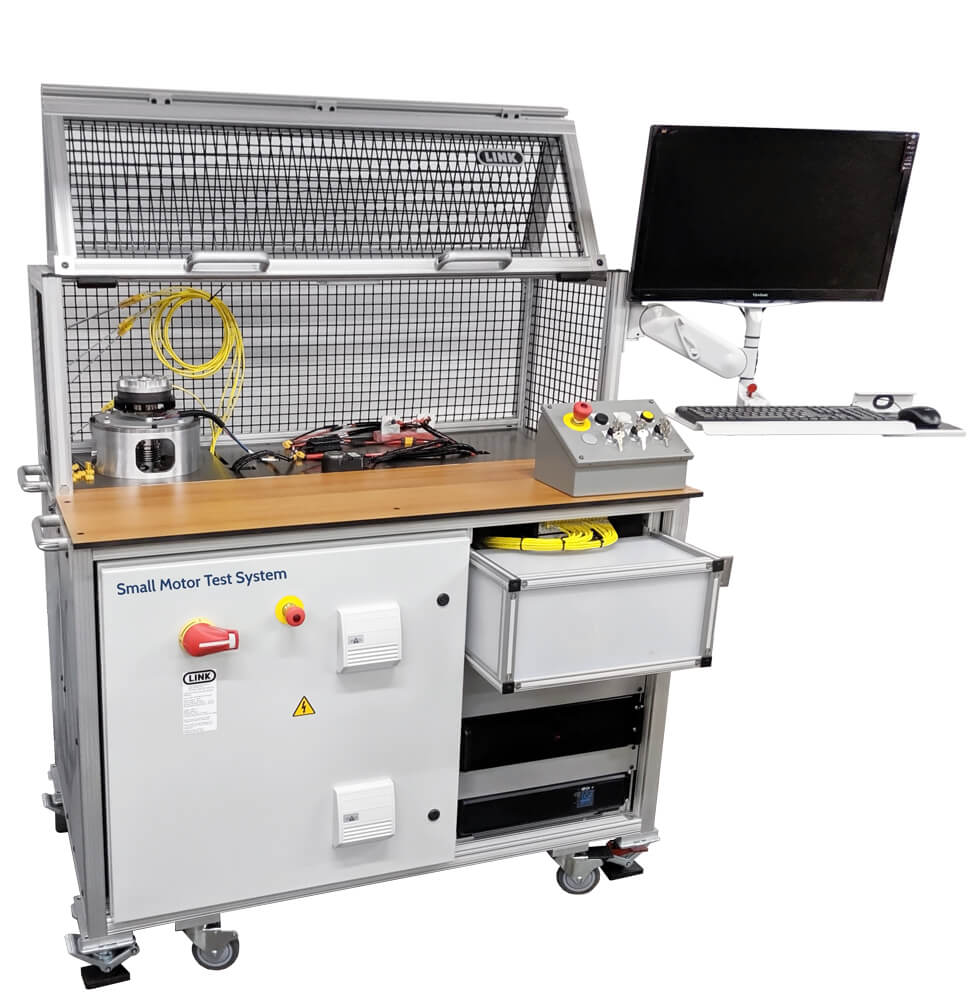

Small Motor Test System – Electric Motor Application
Overview
Link Engineering Company’s small motor test system provides a wide range of motor measurement and characterization capability. This system combines a high-performance dynamometer with a motor analyzer and an array of precision instrumentation for complete small motor drive system analysis. The test system may be operated manually or automatically to perform a sequence of automated tests and measurements.
Component isolation contactors and switches are included, so that the drive system under test may be tested as a complete system or broken into the individual drive system components: motor, motor inverter/motor controller, and power source/battery, for component level measurements such as motor winding resistance or open circuit battery voltage. The system is designed to allow component level tests to be performed with an automated sequence of system level testing.
Key Benefits
- Manual and automated control with ProLINK control and data acquisition system
- Automated report generation through RevDATA+
- Motor analyzer with direct measurement of speed, torque, supply voltage and current, and motor lead voltage and current
- Torque, speed, and mechanical power measurement using servomotor dynamometer
- Automated isolation of individual drive system components for component level measurements within complete system testing
- Direct drive AC servo dynamometer with four quadrant control (±speed, ±torque)
- In-line shaft torque transducer with maximum torque up to 200 Nm
- Low speed testing with low torque ripple and cogging torque
- Maximum speed up to 20,000 rpm
- Horizontal and vertical shaft configurations with quick change motor adaptors and fixtures
- Guarding and safety interlocks for operator protection
- Motor analyzer measurements/calculations including Urms, Irms, P, Q, S, cosф, λ, fundamental power, Id, and Iq
- Integrated high precision measurement instrumentation
