Exhaust Corrosion Fatigue Tester

Overview

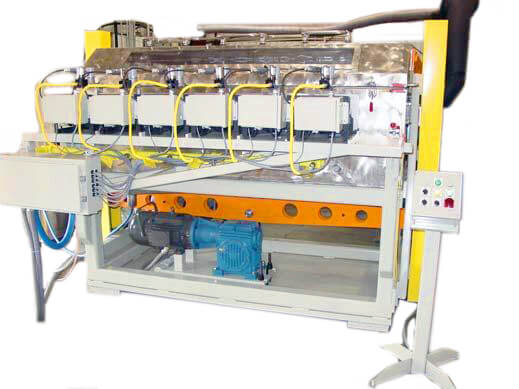

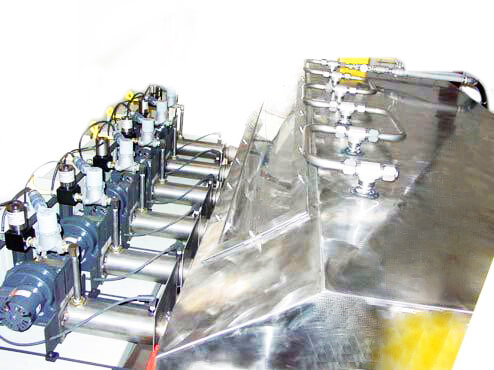

The Exhaust Corrosion Fatigue Tester is capable of running an accelerated corrosion test on an exhaust flex hose or exhaust de-coupler according to various customer-specific tests. Relative corrosion performance between various designs is the main objective of this test. Test components are evaluated for various corrosion mechanisms including inter granular attack along the grain boundary of the material, trans granular stress corrosion cracking, pitting, general surface corrosion, and crevice corrosion.

Key Benefits

Ability to operate under different test conditions and variables
Ability to test between 6 and 12 flex hoses simultaneously

Test Procedures

GM9540P Appendices A4.9 and C
Accelerated corrosion test
GM4465P – Fog humidity cabinet
GM 9505P – Automotive Environmental Cycles
GM9508P
GM9102P
ASTM B 117 – Standard Practice for Operating Salt Spray (Fog) Apparatus
ASTM G85 Annex 5
SAE J2334 – Cosmetic Corrosion Lab Test

Downloads:

Exhaust-Corrosion-Fatigue-Tester.pdf

Category: Servo Dynamics
