Ball Joint Boot Test Machine

Overview

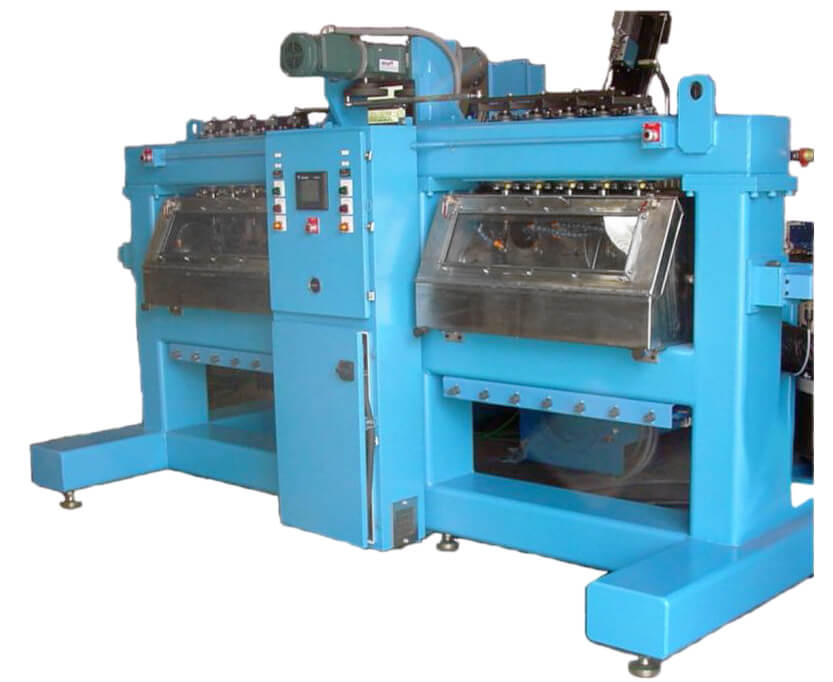

The Ball Joint Boot Test Machine is specifically designed to run the Key Life Tests. This test is for boots protecting ball joints and includes the following test requirements:

Block cycle of articulation of joint
Rotation of joint
Air temperature range from -40°C to +80°C
Slurry with independent nozzles
Cooling of slurry to -15°C
Environment humidity control
Adjustable start/stop position of articulation

Key Benefits

Reliability
Efficiency & Flexibility – Can run two independent tests of five parts each, or one test with up to ten parts.

Application

Boots protecting ball joints
