ProLINK

Overview

ProLINK is the most in-depth and reliable software available for the testing industry and has the flexibility to adapt to your changing needs. This intuitive program can be used across a wide range of testing applications and is renowned for its ease of use.

The control system consists of five main application modules that work together to provide a robust environment for the most demanding control and test systems. Each software tool corresponds to a step in the overall testing process: Test Setup, Procedure, Execution, Data Review, Final Report.

Key Benefits

Intuitive, easy to learn
Off-the-shelf ready
Users can employ Windows interface
Flexible/adaptable to suit your needs
Layers of sophistication to grow with you
Same software used for multiple machine types

Key Features

Designed to perform control and data acquisition for a wide range of test stands
Real time, digital data made easy
Fundamental NVH analysis
Compatible with any test system
RevDataPlus: Cohesive data graphic tool
Immediate review of test results
Customized screen displays
Configurable graphical user interface
Integrated control with other technical systems (B&K, Flir, etc.)
Modular system for data viewing, test scripting and data reporting
Test simulation module

5 Main Application Modules

Configuration Manager (Dyno Control)
Visual Scripting Interface

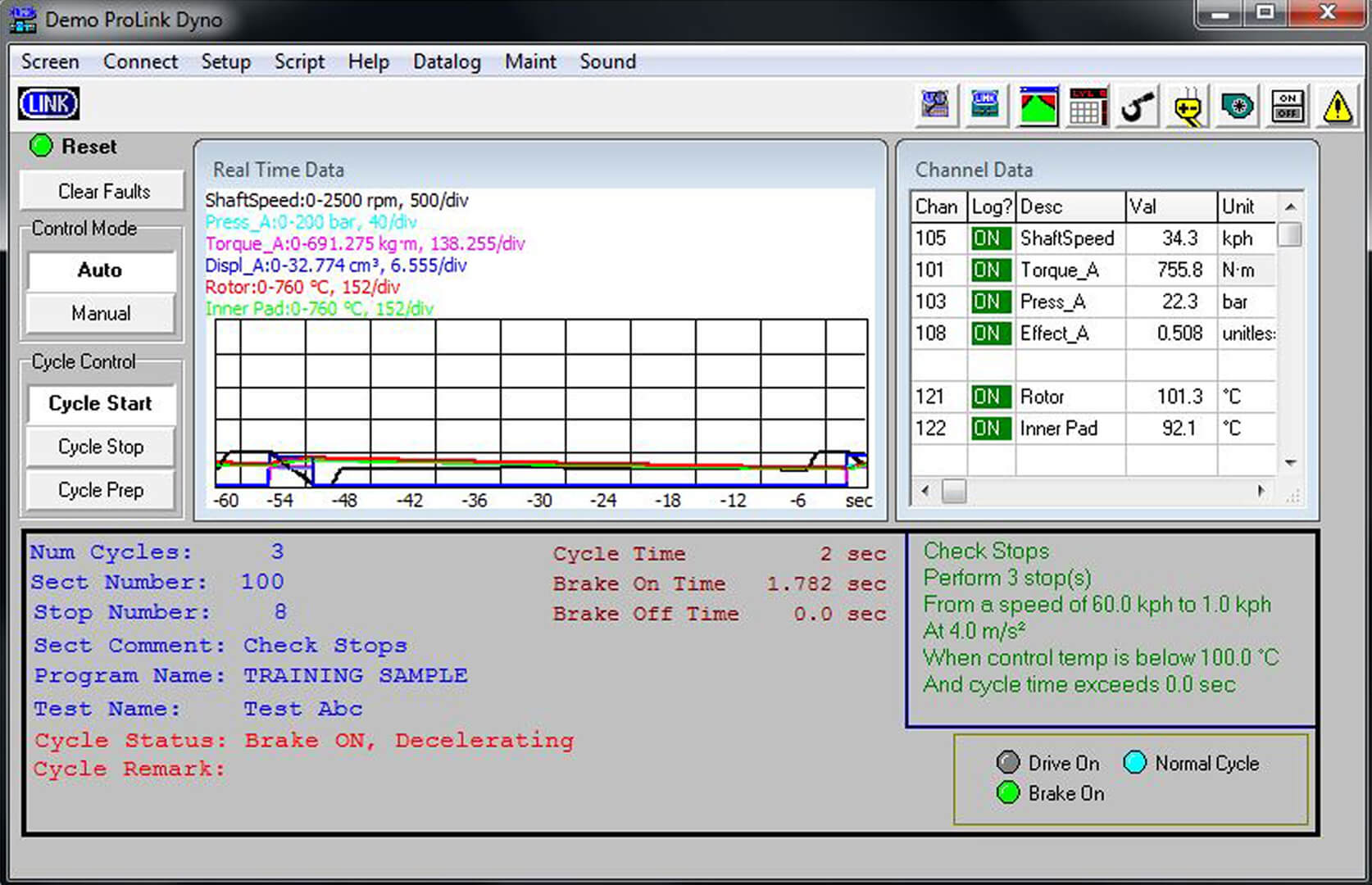

DynoView
RevData Plus
ScriptEdit

Downloads:

ProLINK-Overview.pdf

View ProLINK Blogs

ProLINK Vehicle to Dyno Software Application

ProLINK Regenerative Braking Simulation

ProLINK Dual-by-Wire

View ProLINK Webinars

ProLINK Dynamometer Test Cycles

View ProLINK Products

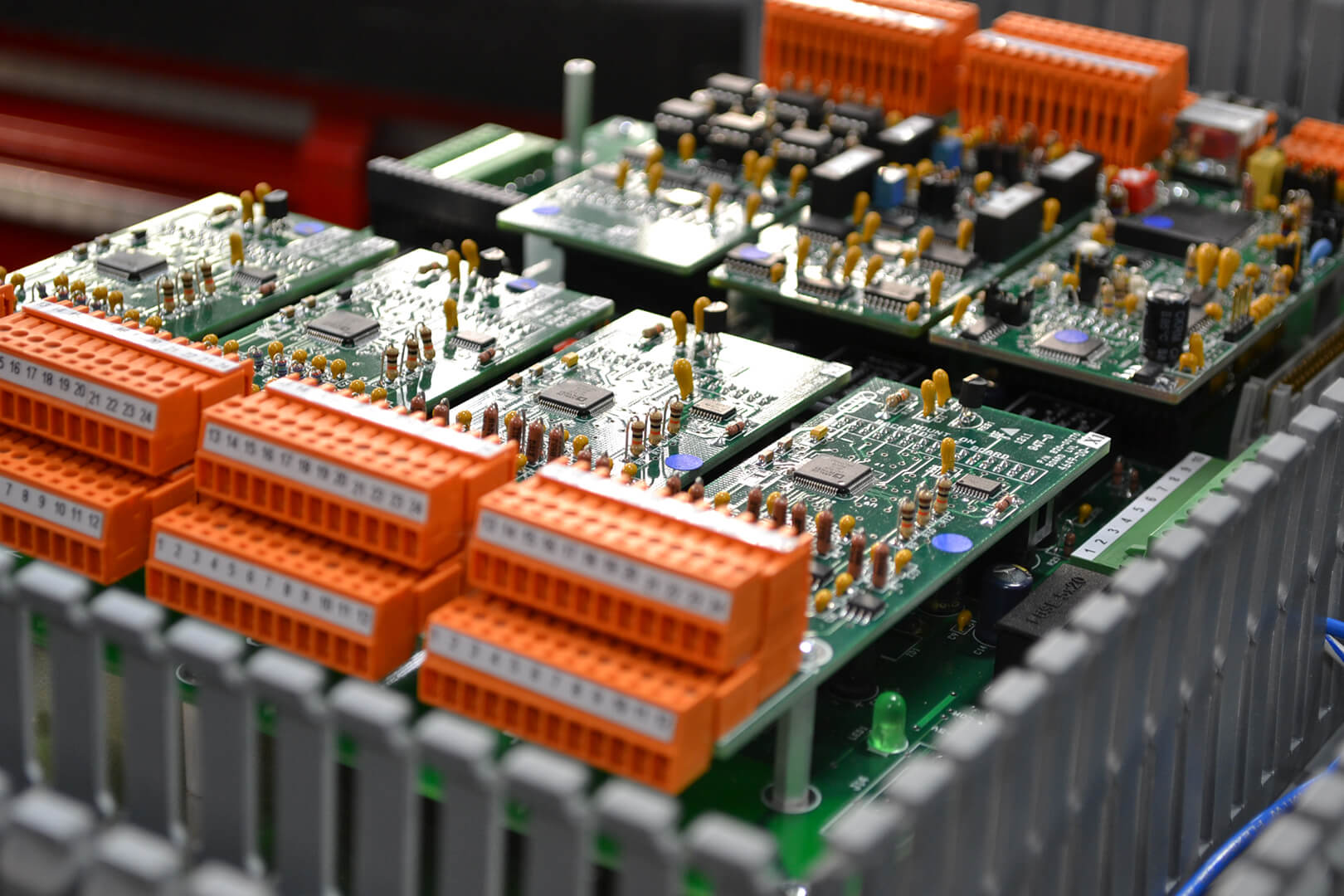

ProLINK DAQ Control Board

ProLINK RegenSIM
