Model 3000 Performance Brake Dynamometer

Overview

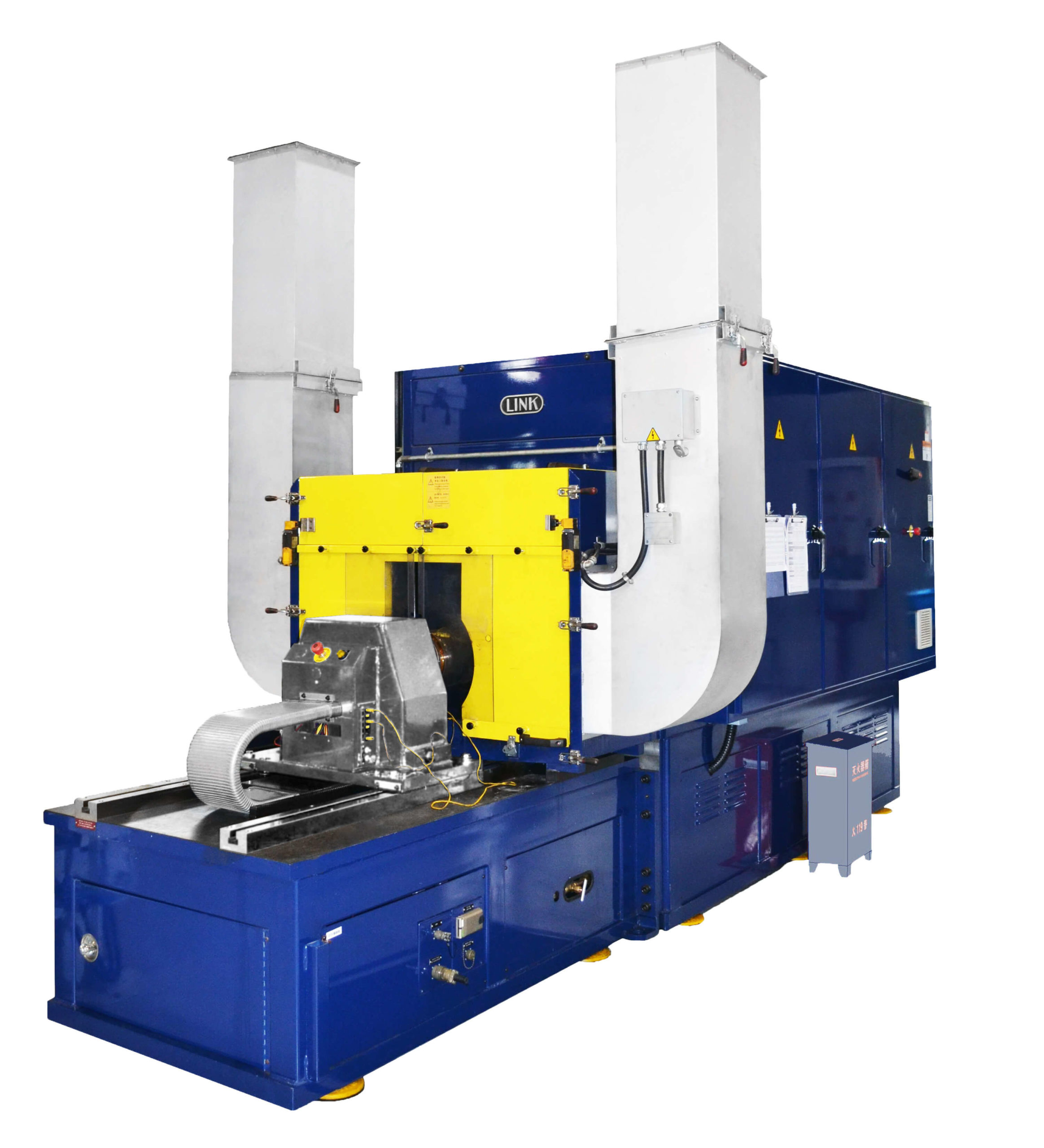

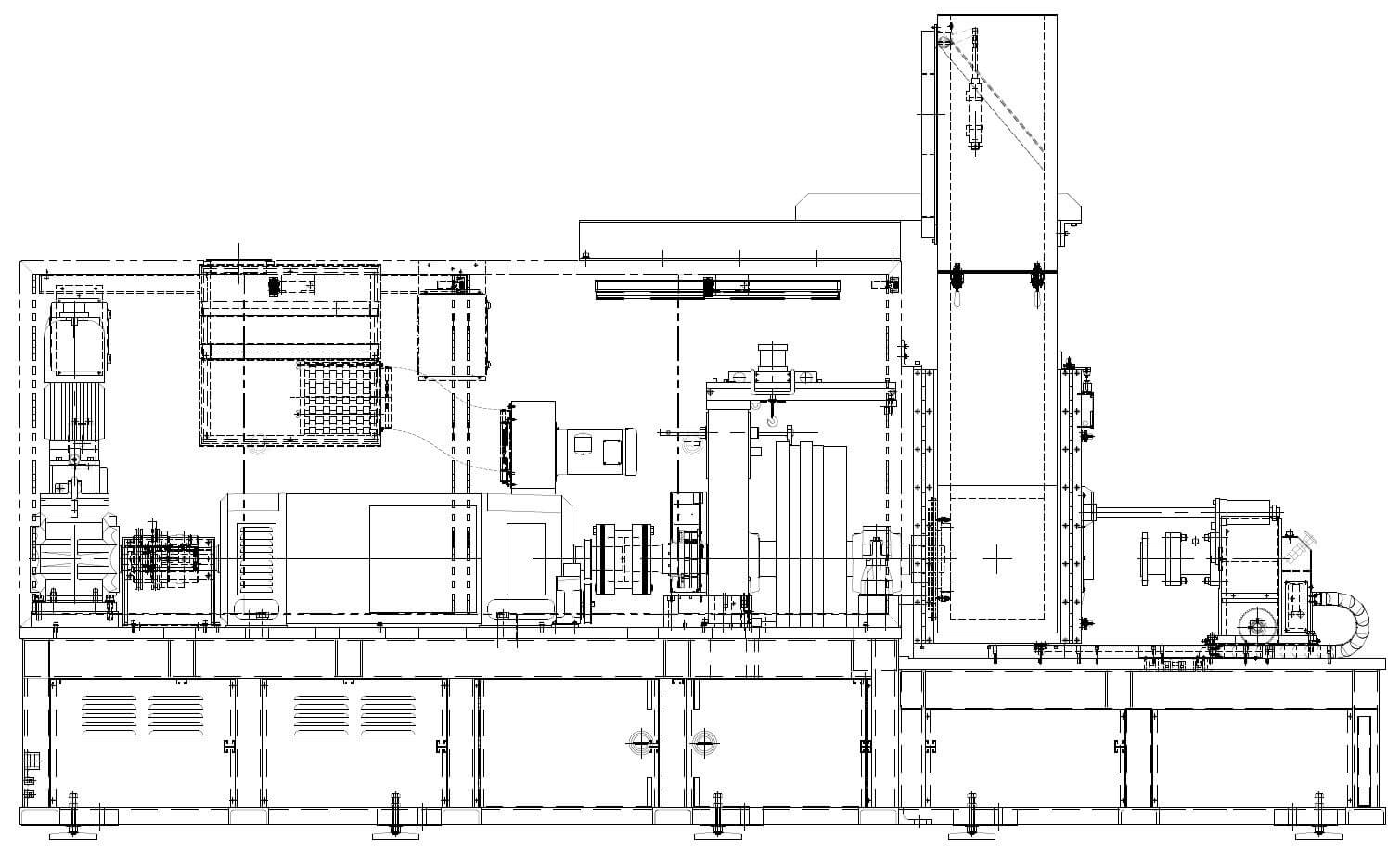

The Model 3000 Dynamometer (Model 3000) is a full-sized system specifically designed to evaluate braking performance characteristics up to 5650 Nm for automotive and light truck brake assemblies. This state-of-the-art machine incorporates a 2-disc inertia section combined with electric motor Inertia Simulation (I-Sim) capability to replicate actual operating conditions.

The Model 3000 is the perfect machine for running research and development test protocols on brake calipers, friction material, drums and rotors in a controlled test environment that has been proven to correlate with vehicle test data. The ProLINK control and data acquisition system allows manual or fully automatic unattended operation.



Key Benefits

  • Latest technology software and controls
  • Proven components with low maintenance
  • Highly configurable with many options
  • Controls and power cabinet integrated onto machine as a single unit
  • Ease of installation (no concrete foundation required)
  • Safety interlocks on all guard doors

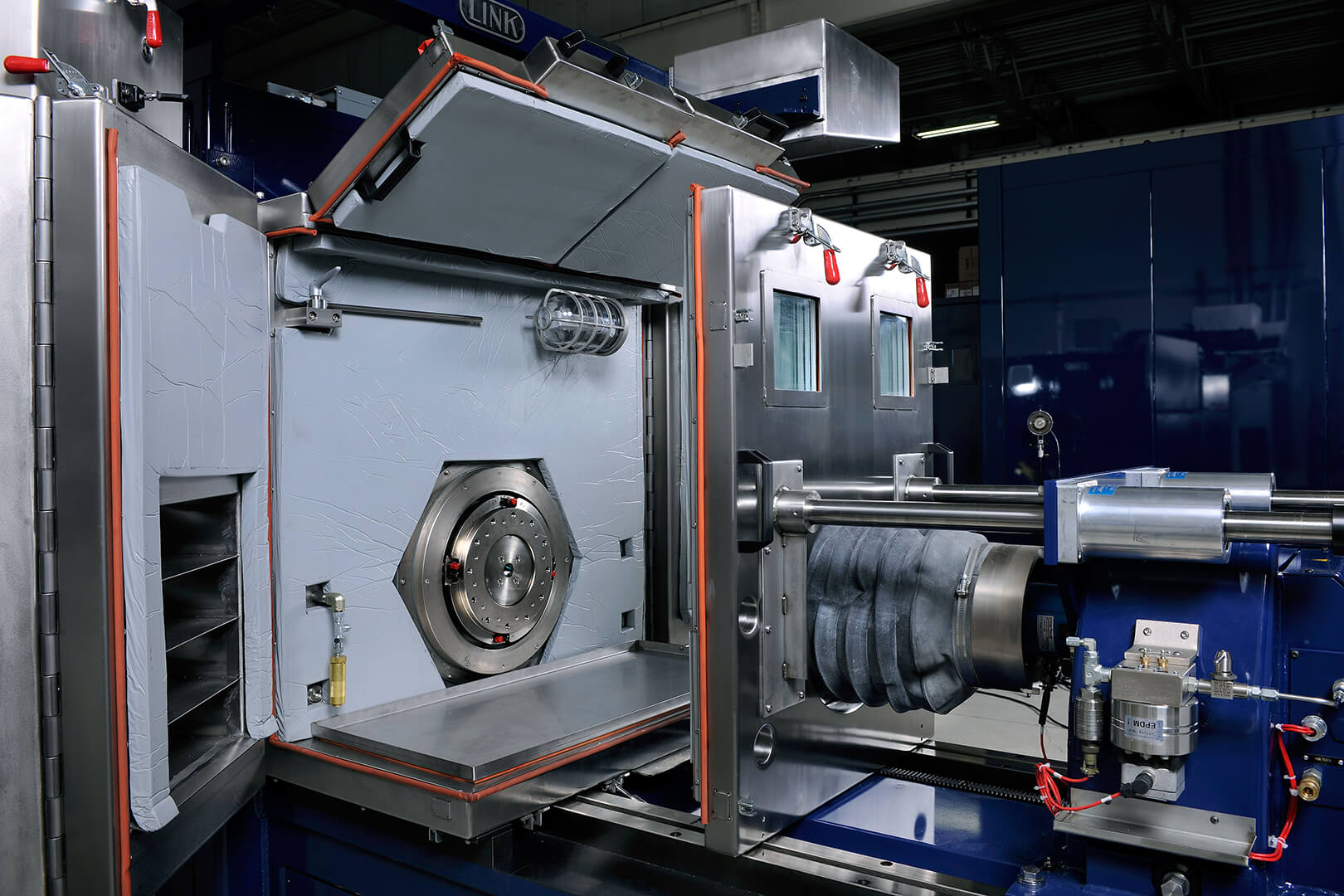

  • Fold-away brake chamber for ease of technician test part setup

Key Features

  • Tabular step-by-step test script generation
  • Customizable graphical data review software (RevDataPlus) for brake engineer
  • Automated reporting tools through MS-Excel
  • High accuracy electric inertia simulation (I-Sim)
  • Servo brake profile control
  • Precision sensors for measurement: shaft speed, torque, pressure, fluid displacement, brake temperature, cooling air speed, air temperature and humidity
  • Integrated interface to DTV measurement, NVH, water spray and park brake systems
  • In-line reaction torque sensor with calibration fixture for torque
  • Power brake bleed system
  • Brake knuckle test fixture
  • Compact pedestal workstation
