LINK vMonitor

Product Overview

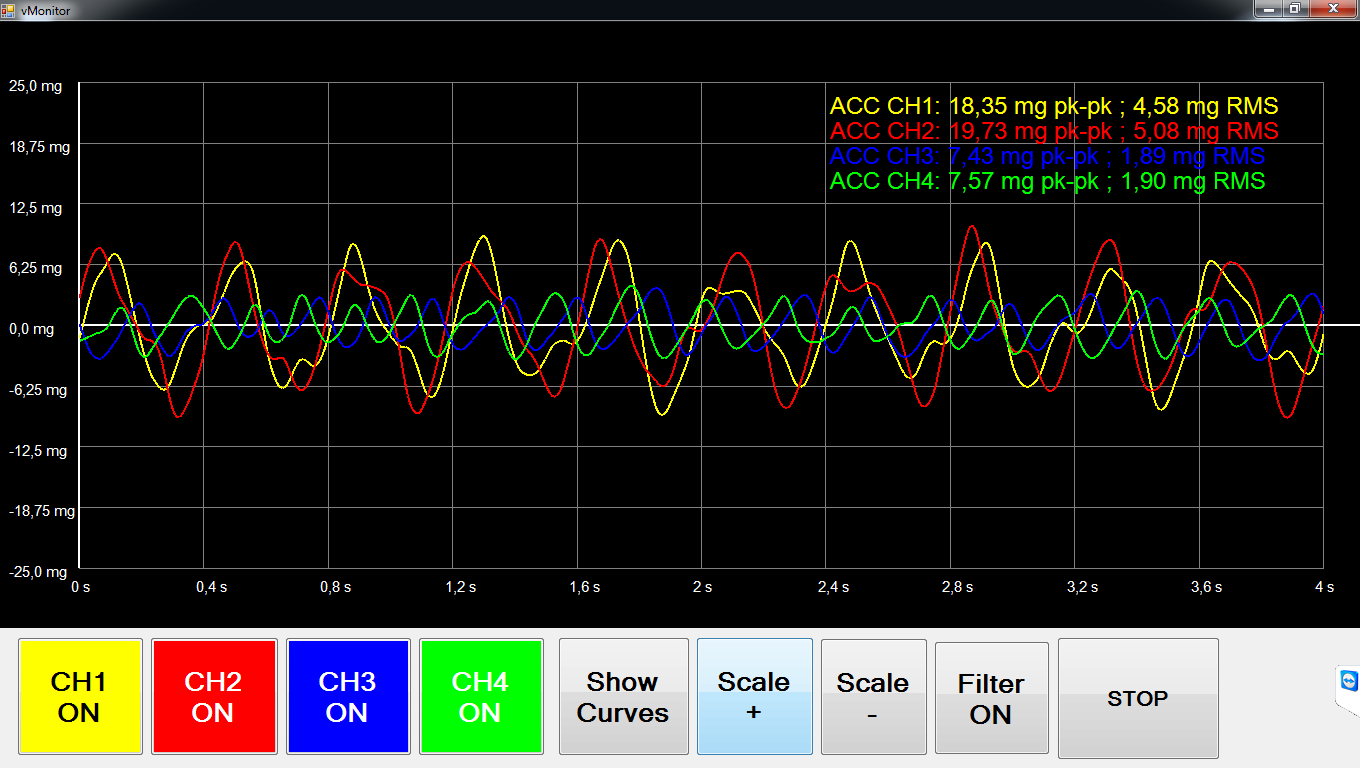

The vMonitor provides a way to measure and record vibrations and shock events caused by or caused on buildings and machinery in a continuous way. This system comes integrated with anti-aliasing filters and enables multi-channel vibration measurements of small amplitudes in the low-frequency range (<3 Hz).

The introduction of permanent monitoring of natural frequencies provides a higher level of safety and aligns in accordance with DIN 4150-3: Vibrations in buildings.

Key Features

The vMonitor advantages include:

24/7 vibration monitoring
Adjustable frequency range
Multi-sensor connection and usage
Data transfer via ethernet
Warning system integrated
Event log and storage of data
Anti-aliasing filter
Remote connection
