Model 1230 Wheel Impact Tester

Overview

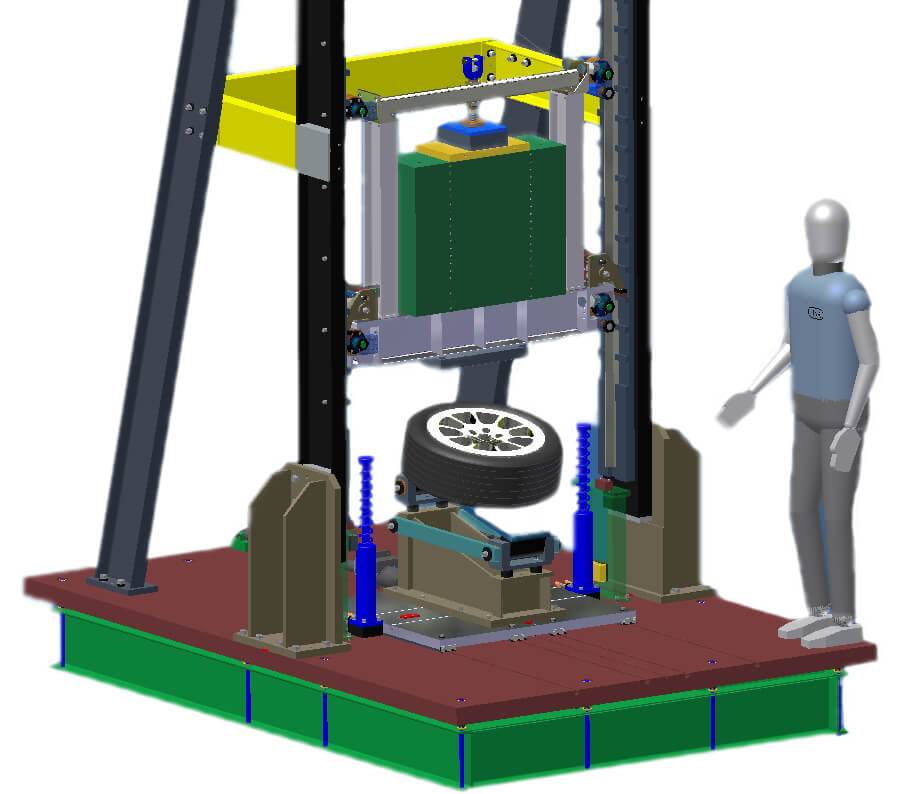

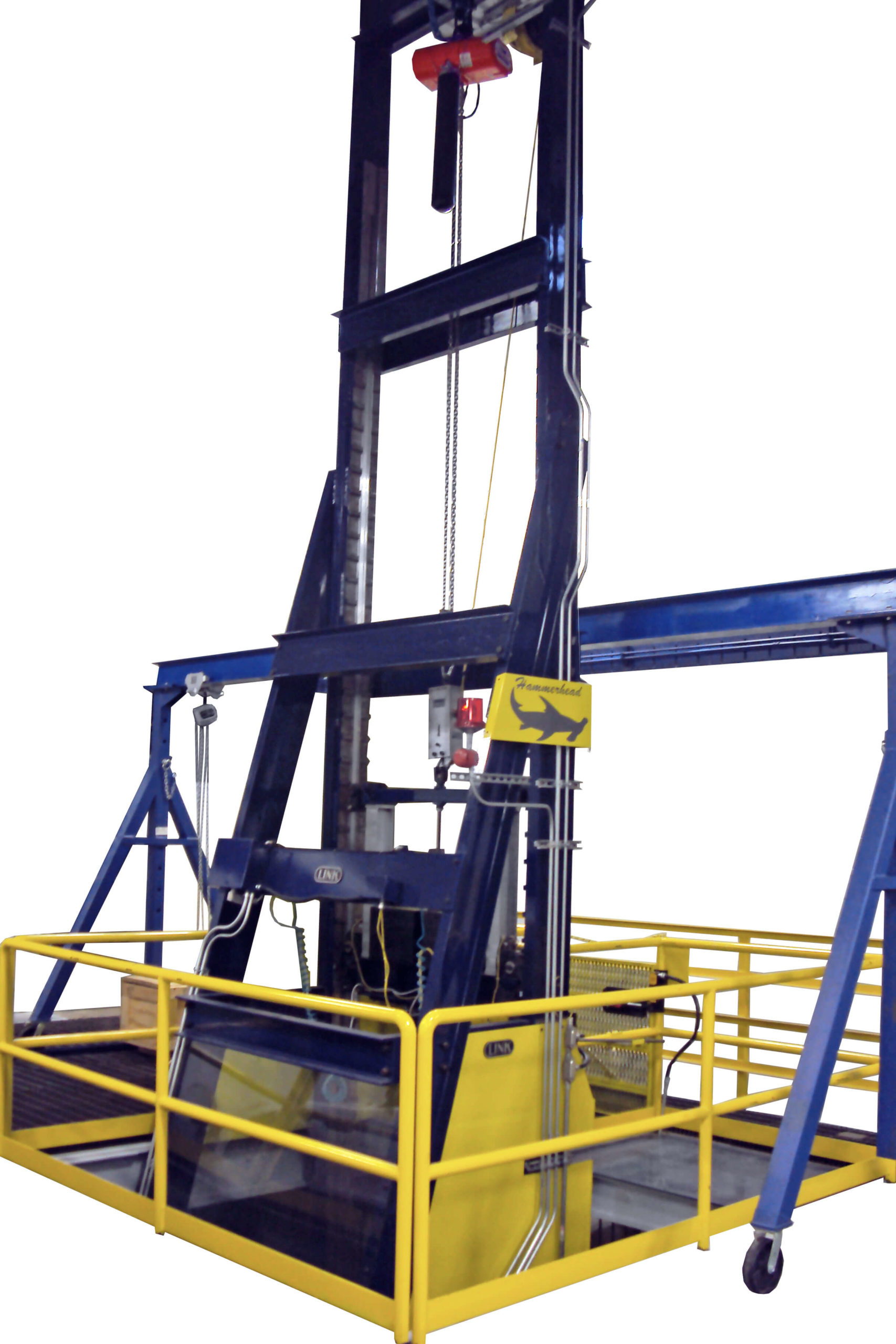

The Model 1230 Wheel Impact Test System measures the results of impact by a dropped weight on wheels and other components. The tester is mounted in a pit below floor level with a two-post frame and guide assembly extending above the floor. Fixtures and detachable striker heads are available to perform vertical or angular impact on a variety of wheels. A motorized winch is used to raise the drop box and incremental weights from up to 4.5 m above the test item. A remote-controlled latch releases the drop box. Sensors measure position and velocity.

Test Procedures

SAE J175
OEM test standards

Specifications:

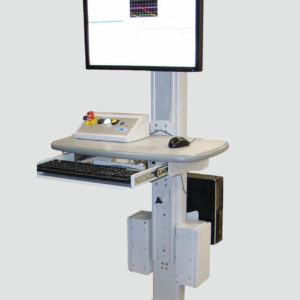

Control System: ProLINK
Drop Box: 115 to 450 kg
Drop Height: 0 to 4.5 m
Velocity: 0.025 to 10 m/s
Position: 0 to 5000 mm
Impact Load Cell: 9000 kg compression

Downloads:

M-1230-Wheel-Impact-Tester.pdf

Categories: Automotive, Commercial Vehicle, Laboratory Testing, Motorcycle, Structural Fatigue, Test Equipment, Tire & Wheel, Wheel
