Model 14200 Roller Brake Tester

Overview

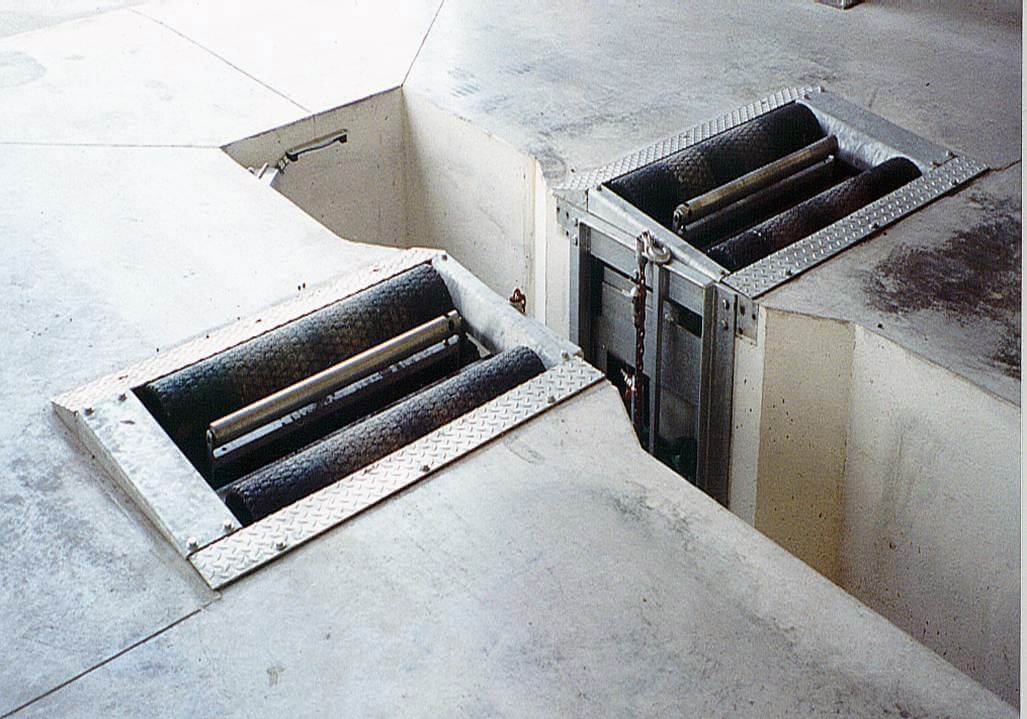

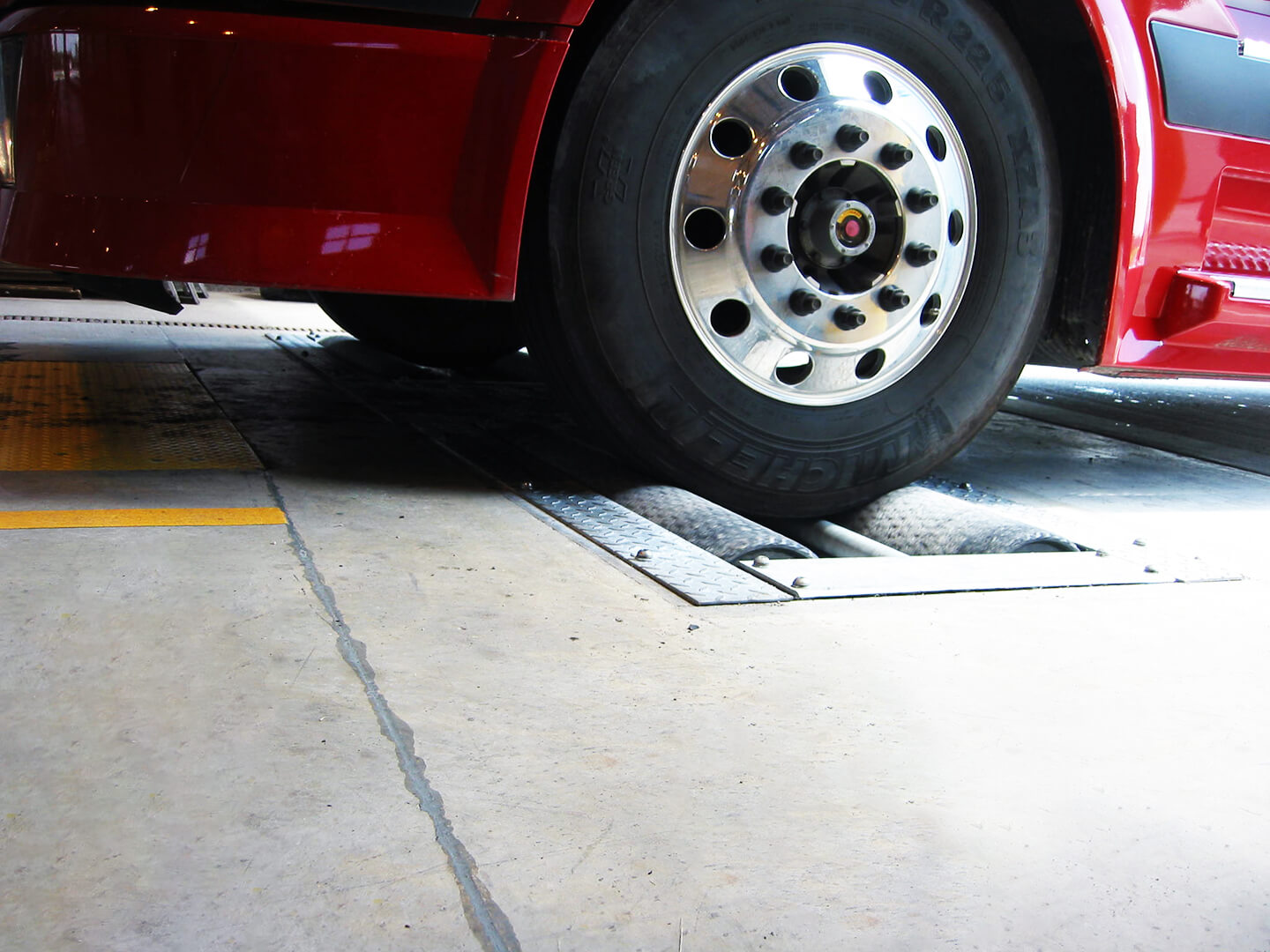

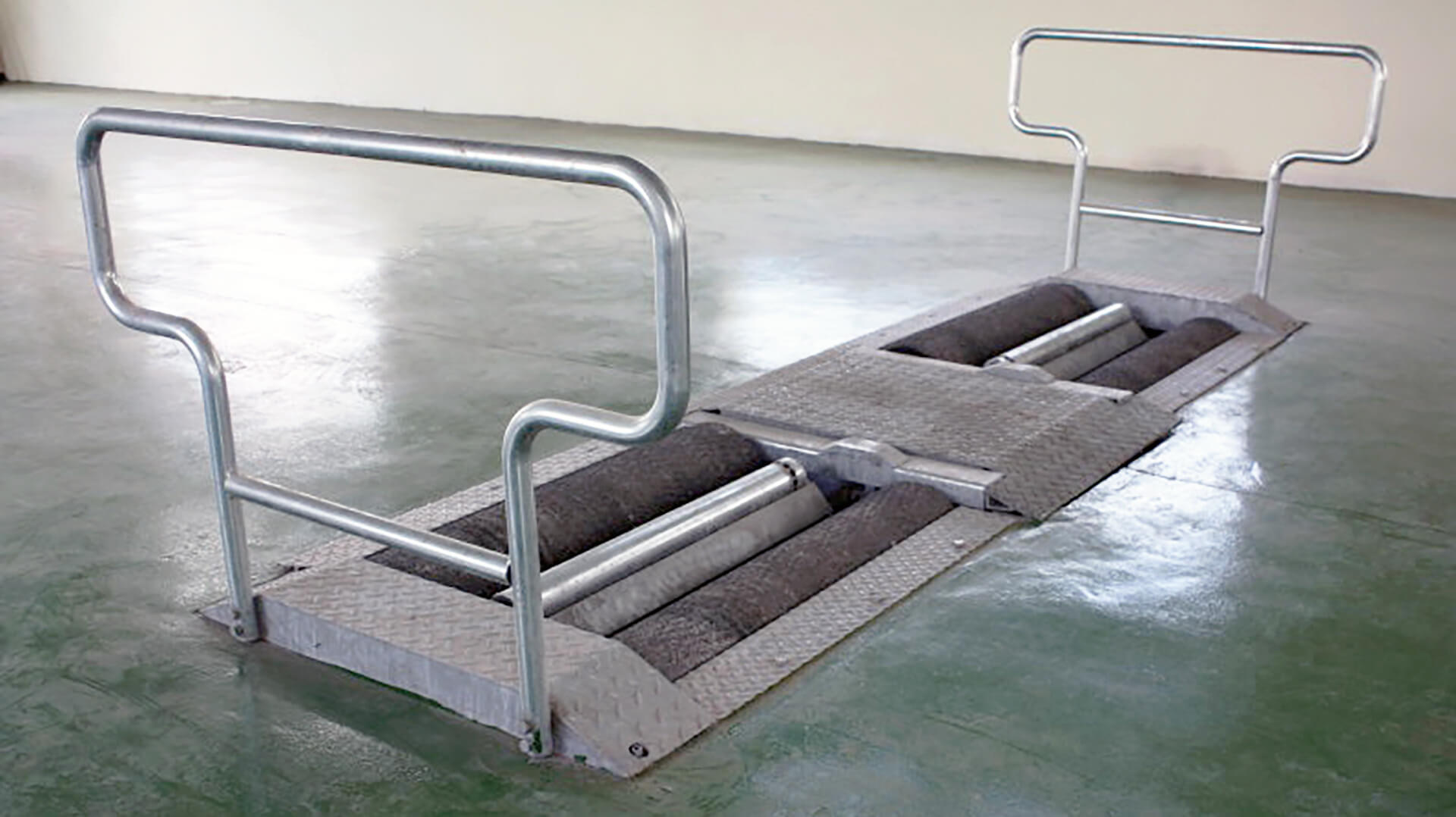

The Model 14200 Roller Brake tester (also known as a Performance-Based Brake Tester or PBBT) uses two large rollers and one small center roller, one-meter-wide, on each wheel, to test vehicles with axle loads up to 20,000 kg. Optional wider rollers and the split sub frame design allow the user to customize the track width range during installation, allowing for a wide range of wheel tracks. A rugged aluminum en¬closure houses large and easy-to-read analog and digital displays of relevant test data.

Key Benefits

Large chain wheels minimize chain adjustments
Large middle roller improves damping
Heavy duty bearings for durability
High quality weight transducers
High strength roller axles

Key Features

Integrated, universal ABS verification and diagnostic system
Wireless ABS communication
Software and support in USA
Custom software available

Downloads:

M-14200-Roller-Brake-Tester.pdf

Categories: Brakes, Commercial Vehicle, Performance, Test Equipment, Vehicle Testing
