Model 3100 SAE N 2 – Wet Friction Test Stand

Overview

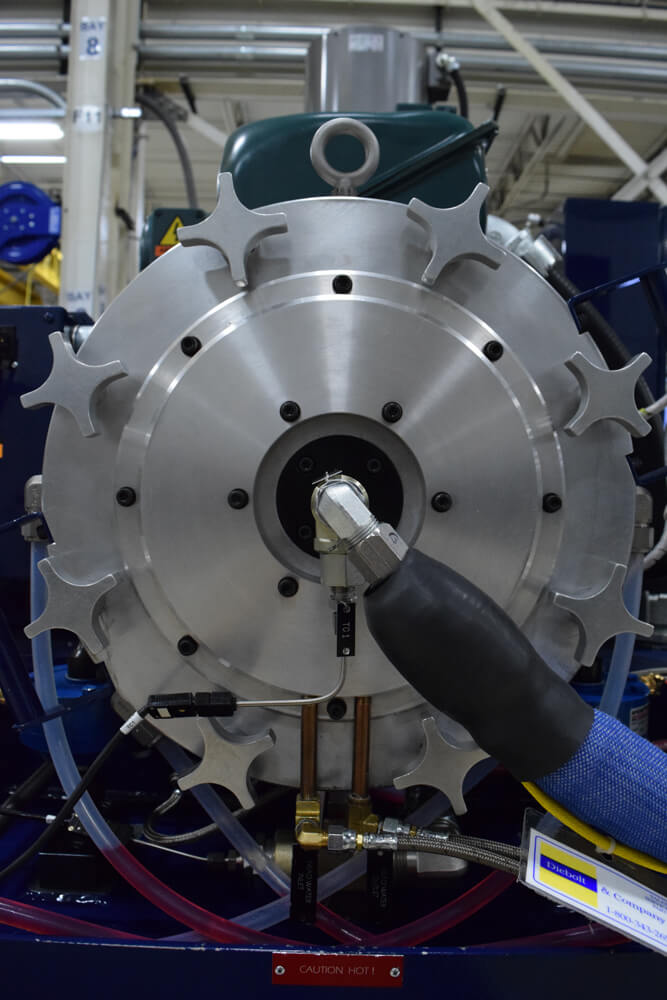

The LINK Model 3100 SAE No. 2 Test Stand is designed to perform standard SAE and developmental wet friction testing on clutch and band systems utilizing production hardware and fluids. This machine incorporates the latest technology for optimal testing versatility and correlation to actual powertrain operating conditions.

Key Benefits

Inertia simulation simulates shift characteristics during testing
Multiple energy levels without mechanical inertia changes
High precision control and measurement (torque, fluid flow and temperature, apply pressure with profiling capability)
Flexible programmability (automatic and manual control modes)

Key Features

Fully automatic or operator dependent controls
Pneumatic, ATF, or dual apply system
Differential Variable Reluctance Transducer (DVRT) sensor in the head
Recirculating hydraulic system
Fluid temperature control

Downloads:

3100.pdf

Categories: Automotive, Chemical, Durability, Motorcycle, Performance, Structural Fatigue, Transmission, Transmission & Driveline
