Model EL1 Spring Tester

Product Overview:

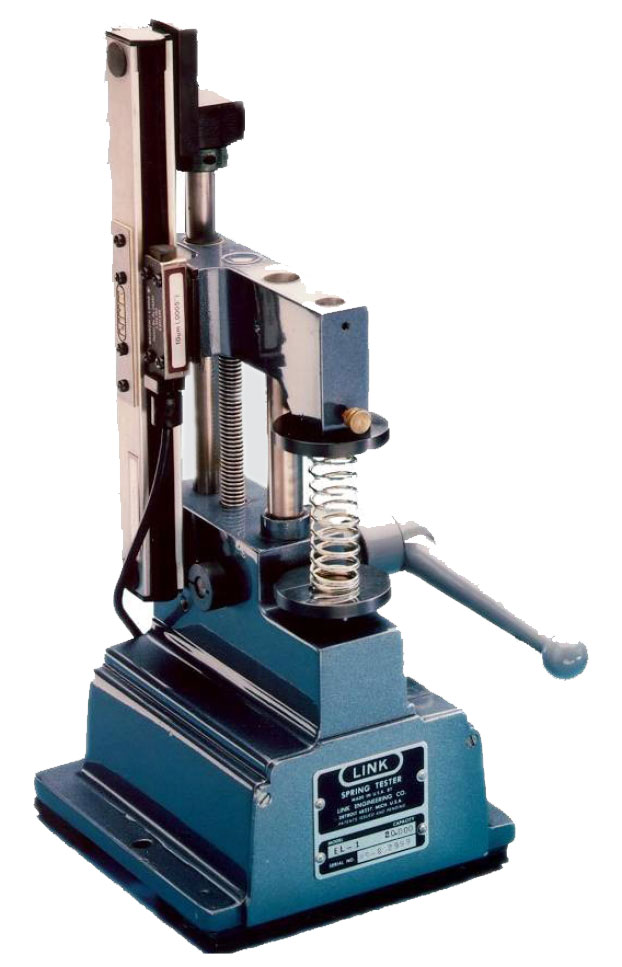

The Model EL1 Spring Tester is a precision instrument designed to provide accurate test results for low load springs and resilient
materials. Rugged construction and high precision make this a durable device for accurate compression and optional tension testing of springs, spring forms, and resilient materials.

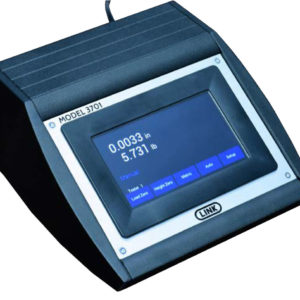

This tester utilizes the Model 3700/3701 display module that offers a real time display of load and height measurements along with data collection of several key spring testing parameters that can be displayed on the module, or output to a computer for generation of real-time load graphs, evaluation with third party SPC software, and data storage.

Key Benefits

Low cost, laboratory grade spring tester
Digital display for load and height
Automatic load cell deflection compensation
Simple operation

Application

Compression
Tension
Squareness Under Load

Specifications:

Operating Voltage: 95 Vac to 250 Vac, 50/60 Hz
Load Cell Range: 2.3 kg (5 lb) up to 11 kg (25 lb)
Load Cell Specifications: -Total Error ± 0.25 % of rated output
Height Specifications: Daylight Opening – Maximum: 101 mm (4 in); Stroke: 101 mm (4 in); Height Resolution: 0.005 mm (0.0002 in)
