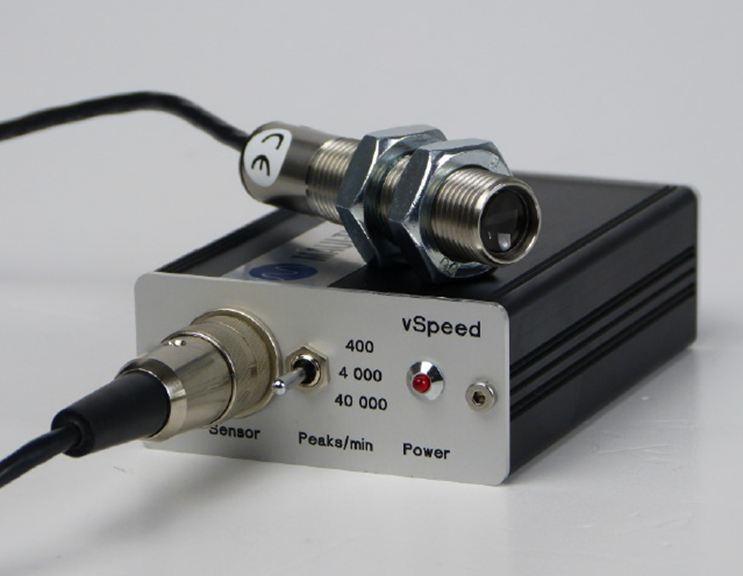

The vSpeedBox allows users to measure speed without any tacho inputs by simply using a sensor assembly. This approach enables the measurement of speed-dependent waterfalls or speed-dependent measured variables, like those for order analysis.
To ensure constant high-level accuracy, the vSpeedBox comes with three speed ranges that can be adjusted based on the required measuring ranges. The system will also provide feedback in case the set range is exceeded by means of a flashing LED.
The input pulses coming from the LED-sensor are used to measure the signal period with high accuracy based on a 16 MHz time base.
vSpeedBox can be integrated and used in a wide range of applications due to its simple assembly. This system can be used on test benches, R&D, machine diagnostics, monitoring or control of speed, or calibration of other rotational speed sensors. This is all possible due to the following features:
- High-accuracy tachometer with DC output
- Adjustable max speed range for maximum accuracy
- High-precision analog voltage output
- TTL output (pulse/rev)
- ISO 17025 (DAKKS) calibration
- Integrable to ProLINK
- Simple sensor assembly and installation
- Accuracy equal to or less than 0.25%
