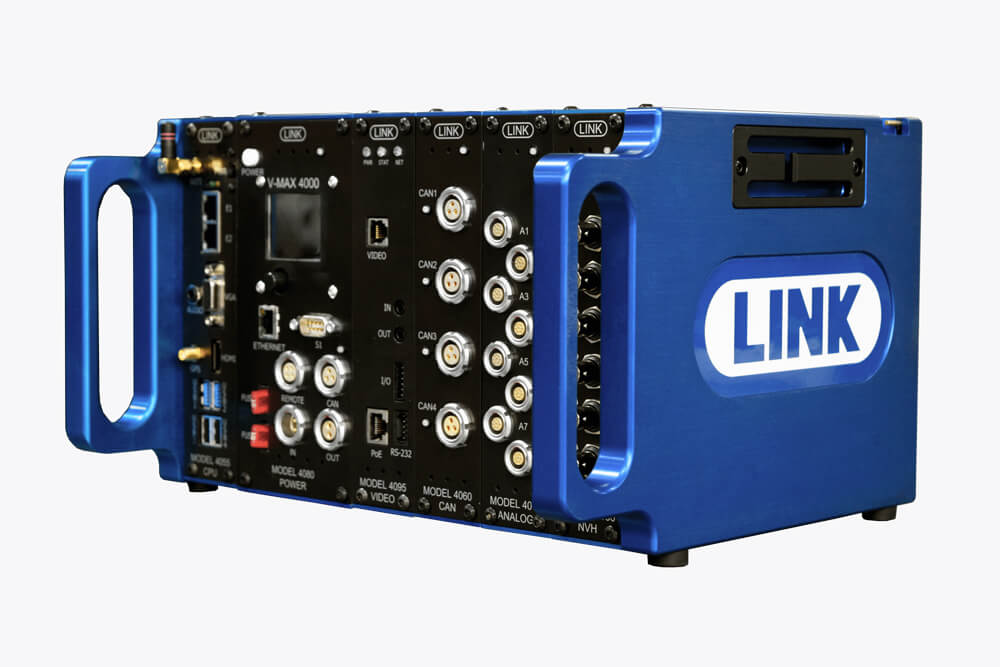

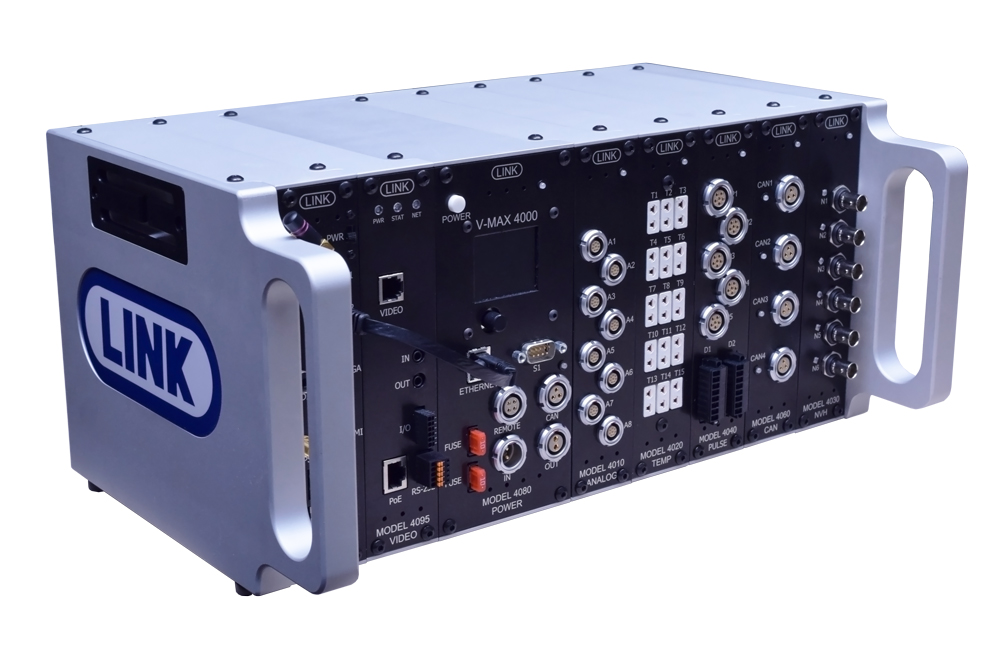

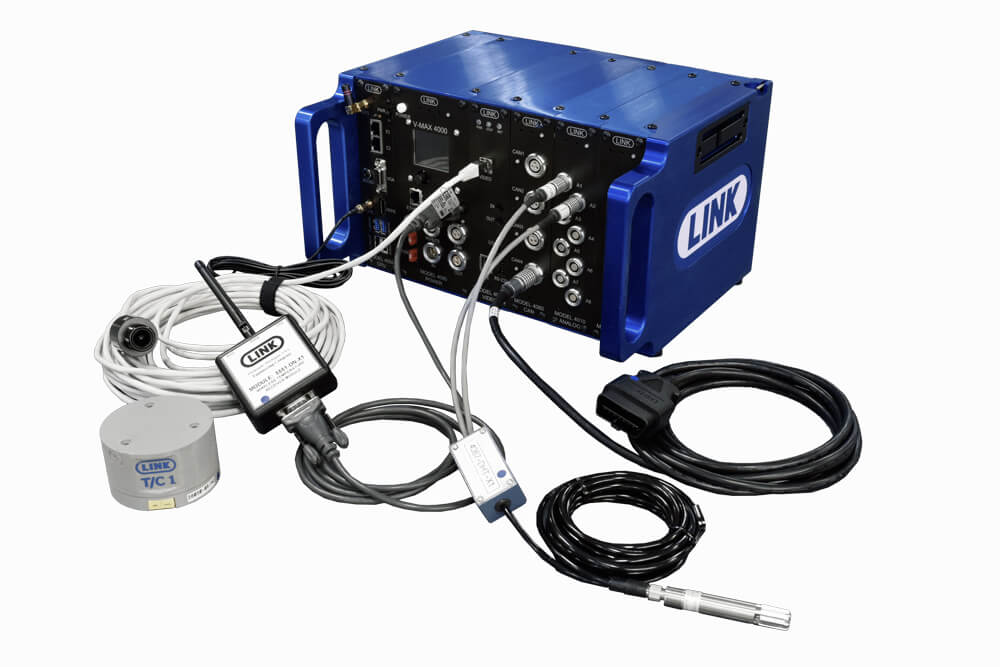

V-Max 4000 – Modular Data Acquisition System

Overview

Link Engineering Company’s V-Max 4000 provides the latest in modular data acquisition system technology. The combination of high sampling rates, reliability, modularity and versatility make the V-Max 4000 ideally suited for your precise test applications while meeting your specific budget requirements.



Key Benefits

  • Runs ProLINK, common to LINK laboratory systems
    • Allows vehicle to laboratory transformation
  • Records in LINK standard data format up to 1000 channels
    • 1000+ summary variables on every recording
    • Sample rates up to 51.2 kHz depending on channel
  • Localized technical/calibration support in most regions of the world
  • Out-of-the box data logger and programmable system
    • Add-ins allows custom functionality
      • Custom test prompting
      • Immediate end-of-recording user feedback
      • Library of add-ins included
      • LINK can help develop a custom test system
  • Data and video synchronization
  • Designed to aid the driver in successful test execution
    • Driver prompts
    • Configurable heads-up display
    • Commenting interface
    • Customizable target bars with ramp rate functionality
    • Channel saturation warnings

Key Features

  • Modules can be added as test needs evolve
  • Modules can be shared between systems
  • Allows users to buy what they need, while allowing for future growth
  • LINK will lease modules to expand capability for short term demand

Downloads:

V-Max-4000.pdf
VMAX-Sensors-Accessories.pdf
V-Max-Modules.pdf
